So this entry will cover a lot of ground: first, we have to be able to reliably read, image and write Canon disks on another system, then decipher the format, and then patch those images to display pictures and automatically run arbitrary code. At the end we'll have three examples we can image on any PC 3.5" floppy drive and insert into a Cat, turn it on or hit DISK, and have the Cat automatically run: a Jef Raskin "picture disk," a simple but useful dummy terminal, and the world's first (I believe) Canon Cat, two-disk, slightly animated and finely dithered, slideshow graphics demo!
But before we get to pumping out floppy disks, we first need to talk about how one uses a Cat. And that means we need to talk a bit about Forth, the Canon Cat's native tongue. And that means we should probably talk more about the operating system too. Oh, and we should go down to CompUSA and buy a brand new floppy drive while we're at it.
For those of you without a Cat, which sadly will be most of you, at least a little of this entry can be done in MAME, which is at present the sole extant Cat emulator. (A Wasm version with ROMs ready to go is at the Internet Archive, though here I'll be running it on my Raptor Talos II in Fedora.) Unfortunately MAME emulates neither the internal disk drive nor the serial port, so you won't be able to run these demos on it yet, and there's a couple glitches we need to work around, but this will still give you a flavour of the machine and let you poke around a bit.
Everything in this entry assumes the production v1.74 ROMs, which were to the best of my knowledge the only version mass-produced Cats were ever officially shipped with. Source code and binaries for v2.40 ROMs exist but my Cat doesn't run them. If you want to run the v2.40 ROMs anyway, don't be surprised if some of this doesn't work right, and I'm very sure the demos won't.
The major glitches to rectify are the emulator freezing when the beeper is triggered (probably incomplete emulation of one of the custom Canon gate array chips) and switching the keyboard layout so we can type angle brackets (unpossible with the default US layout, also true of a real Cat). Let's fix those issues first.
Then, to change the problem signal, with USE FRONT/Control still down, tap SPACE twice to move to that, and tap LEAP until "Flash" is shown (and only flash, none of the beep options). Your screen should look like the grab above. Assuming it does, now you can let go of USE FRONT. After a brief pause the settings will be written to the battery-backed settings RAM and the Cat will go back to the main document.
So that you understand what we'll be trying to accomplish (and, eventually, subvert), let's have a quick look at what makes the Cat's interface unique.
A tour of the Cat
At the bottom of the screen is the ruler. This shows your document margins and your tab stops, though in characters, not inches — the Cat uses fixed-width, non-proportional characters. Paragraph style, line spacing and the keyset in use (I or II, for those keys with multiple character pairs assigned to them) are at the bottom, along with a memory usage gauge and the current line number within the current document.
LEAPing also is how you mark text. If you LEAP first to the beginning of a block of text and then LEAP to the end of it, then press both LEAP keys, that text is selected. Besides applying styles like boldface or all-caps to it, you can move it by LEAPing elsewhere, or copy it and move the copy, or delete it. A single level of undo is available with the UNDO key.
Raskin's intention was that the document should handle dynamic text as fluidly as static text (if Canon had let him and the firmware permitted, this would undoubtedly have been how graphics were handled also), and that such text should be computable on the fly. Let's compute my favourite easy-to-remember approximation of π. Type 355/113 and highlight it with the LEAP keys: hold down LEAP LEFT and type 3 (jumps to the first three), then hold down LEAP RIGHT and type 3 again (jumps to the last three), then press both LEAP keys.
This process can be slow if there are lots of things to compute, and the 5MHz 68K isn't exactly a speed demon. Pressing any key while the CALC icon is displayed will cancel the operation, true for any such task including printing except DISK (for obvious reasons) and one more to be discussed.
Let's enter a simple spreadsheet where we will compute the tax on a sale of widgets and then total the transaction. We'll specify unit price and number sold, and compute a fixed tax of 10% (though this could just as easily be a variable). There are two tab stops between the Unit Price and the Sales, so the expression becomes use(-3)*use(-1)*0.10 to compute unit price times sales times 10%.
But there is ample online help if you hold down USE FRONT/Control and press HELP (by default the N key). This is the default screen if there is no pending error state. If there were an error, such as a problem reading the disk, the Cat will beep politely and pressing USE FRONT-HELP will instead explain the error in prose. (Raskin hated modals.)
Here are the other keys we looked at before, SETUP, CALC and SORT. Every bit of their text is also built-in to ROM.
Sallying tForth into the ROM
Anyway, except for that easter egg, everything you saw was what Canon wanted you to see — a sophisticated word processor. But what Jef Raskin wanted you to see, and Canon didn't, was a general-purpose computer that just happened to use a word processor-like primary interface, complete with a built-in programming language. That language is Forth, as descended from the original Swyft, or more accurately tForth, an implementation using tokens (the "t") instead of direct addresses for each word in a word definition. This requires a level of indirection to look up the execution address when a word is executed, a semantic difference between this concept and a bytecode approach, but it also means that words can be redefined or even deleted without leaving stale pointers in unrelated words that reference them. More importantly, code can be considerably more compact because tokens don't necessarily need to be the size of an entire address (Cat tokens are byte-sized, though often taken as word-sized groups) and the code they reference can be moved and compacted. This was important given the 256K of memory the Cat shipped with, which wasn't a huge amount even in the mid-1980s and had to be shared with the video circuitry.

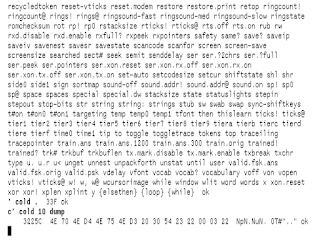

Forth is accessed in two ways, one of which you just saw for entering commands at a traditional REPL-like prompt. This is the mode we will primarily be using, and is fully supported by the operating system, but the other fashion is clearly more Raskinesque. Remember how you could highlight expressions and have the Cat compute them?
In any event, upon pressing USE FRONT-ANSWER ...
Aside: what if you make an error?
So here's a little warning: tForth is not nearly that hostile, but while it may have more guardrails than the typical Forth implementation, that's not saying very much. Although the ROM is relatively resistant to rookie mistakes and I'm not aware of anything that can permanently brick the logic board, you can damage things (like getting the track and address transposed when you command the disk drive to seek!), you can't interrupt a Forth operation if you inadvertently cause an infinite loop, you can freely trash the system and anything in memory, and you can lock up the system so severely that nothing will fix it but a powercycle. To borrow a quote from Terry A. Davis, tForth "is a motorbike. If you lean over too far, you'll fall off. Don't do that." This particular minefield won't blow off your arms, but it might throw you on the ground pretty hard.
I should note parenthetically that on a real Cat you can soft-reset the system by typing cold at the ok prompt. It's very handy for reducing wear on the power switch, but doesn't seem to work in MAME.
A fair bit of the fundamentals on which this article is based come from the copious technical documentation on the platform, collected and preserved at canoncat.net. Some of it actually hails from the Swyft's development, but the Cat is so similar to its ancestor that most of their content is still relevant. We'll then build on this basis for the tricks we'll pull.
The 256K system ROM is located at the bottom of the address space with the lowest 1K being the 68K exception vector table, and above that the battery-backed settings RAM from $040000 to $041fff. The main RAM starts at $400000, which is also where the 28896-byte (~28K) 672x344 monochrome display bitmap is stored. From $600000 and up is the memory-mapped I/O range, but we will rarely manipulate those devices directly.
Also, you don't need to try to read every word on this screen and extract them from ROM either because I've already done it for you. Go ahead and open up the Github Catbox project and refer to the handy list of words, including everything in the hidden vocab. We'll be using tools from the Catbox to do more spelunking in the ROM very shortly.
That's a sufficient understanding of tForth under the hood for what's coming up.
Reading and writing Cat disks
In our previous entry on the Canon Cat hardware, we shored up the Cat's internal floppy drive, which is a Canon-manufactured device specific to it. However, the disks it uses are ordinary 3.5" floppy disks, and modern low-level imaging tools can read them in a standard PC drive.
The basic rudiments of the format have been known for awhile thanks to Dwight Elvey — if Raskin was the father of the Cat, then Elvey would surely be its godfather — and his notes indicate the drive is writing regular 512-byte sectors, 10 per track and 80 tracks per disk, single-sided. (Atari ST enthusiasts will find this format familiar. While the ST by default stores only nine sectors per track, it can store ten, such as on titles such as Dungeon Master.) That's 400K a disk, and since the Cat only shipped with 256K and had additional RAM sockets only for 384K total, the entirety of the supported RAM will fit. Both double-density and high-density 3.5" floppies apparently work, though I have plenty of new-in-box DD floppies here and we'll use those.

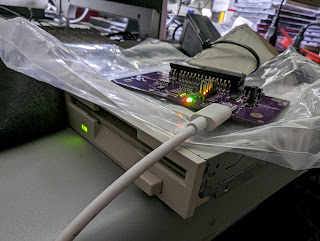

Since I wanted nice clean disks written on a good quality drive for my Cat, I decided to go down to CompUSA and buy a new floppy drive too.
Sadly, here's where we leave MAME behind, since it doesn't support the floppy drive or disk images yet. Remember us typing Enable Forth Language? Let's make a disk out of that on the real Cat. The DISK help screen looks like this:
But that's not all it's saving, though. If you read the DISK help carefully, you'll note it says something about showing "a sample of what's on the disk" if you have a different disk present. Ignoring the question right now of how it determines which disk goes with what workspace, how can it show the document on the floppy disk if the entirety of RAM could be on it? Wouldn't it overwrite the document in memory?
Let's dump this disk and investigate. It's possible that the Canon drive uses some weir-dass GCR format, but it turns out to our delight that it's regular MFM. Since we know it's single-sided, there's no need to check both sides, and we can stop scanning at track 80. Thus, we can get a read of the disk as a straight in-order sector dump with gw read --format=ibm-scan --tracks=c=0-79:h=0 test.img.
% gw read --format=ibm-scan --tracks=c=0-79:h=0 test.img Reading c=0-79:h=0 revs=2 Format ibm.scan T0.0: IBM MFM (10/10 sectors) from Raw Flux (91178 flux in 400.47ms) T1.0: IBM MFM (10/10 sectors) from Raw Flux (91231 flux in 400.50ms) [...] T18.0: IBM MFM (10/10 sectors) from Raw Flux (85652 flux in 400.49ms) T19.0: IBM Empty from Raw Flux (50039 flux in 400.50ms) T20.0: IBM Empty from Raw Flux (50038 flux in 400.46ms) [...] T78.0: IBM Empty from Raw Flux (50043 flux in 400.51ms) T79.0: IBM Empty from Raw Flux (50043 flux in 400.52ms) Cyl-> 0 1 2 3 4 5 6 7 H. S: 01234567890123456789012345678901234567890123456789012345678901234567890123456789 0. 0: ................... 0. 1: ................... 0. 2: ................... 0. 3: ................... 0. 4: ................... 0. 5: ................... 0. 6: ................... 0. 7: ................... 0. 8: ................... 0. 9: ................... Found 190 sectors of 190 (100%)
An immediately interesting thing about this image dump is that each track (cylinder)'s ten sectors are numbered 0-9, not 1-10 which is more typical.

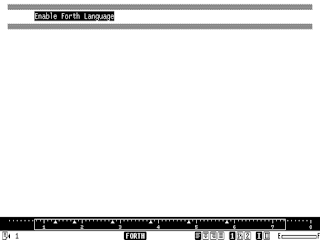

If we dump strings, we can find our text Enable Forth Language near the end of the image. This makes sense since the text is stored in the upper part of RAM, above the Forth dictionary. We can see some other strings like -1 wheel! savesetup re presumably from when we entered that command, though it appears earlier in the file.
We know that each track is 5120 bytes ($1400, 512 bytes times 10 sectors) long. The first track is 10 repeated sectors of
00000000 00 00 81 2c 00 00 db c6 00 00 74 e0 00 00 74 c6 |...,......t...t.| 00000010 00 00 74 d4 00 02 c8 ea 00 40 7a e8 00 40 7c fc |..t......@z..@|.| 00000020 00 00 00 2c 00 00 ff 81 00 00 00 11 00 00 ff ff |...,............| 00000030 00 41 10 10 00 02 c8 d0 00 41 00 68 00 41 01 dd |.A.......A.h.A..| 00000040 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| * 00000060 ff ff ff ff 20 08 33 26 00 11 ff ff ff ff ff ff |.... .3&........| 00000070 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| 00000080 01 d7 3c 0c 00 42 00 00 00 00 00 ed 00 41 40 20 |..<..B.......A@ | 00000090 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| 000000a0 00 00 00 00 00 00 00 00 00 43 c0 28 ff ff ff ff |.........C.(....| 000000b0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| 000000c0 ff ff ff ff 00 42 00 08 00 43 ac 00 00 42 06 8f |.....B...C...B..| 000000d0 00 43 ab b4 00 43 ab b8 00 42 06 8e 00 00 00 00 |.C...C...B......| 000000e0 00 00 00 00 00 41 3f b4 00 42 00 00 00 43 ac 20 |.....A?..B...C. | 000000f0 00 41 38 00 00 00 00 00 00 04 00 10 ff ff ff ff |.A8.............| 00000100 19 52 e5 78 43 7d 72 d2 dd d2 1a 46 10 9d f7 58 |.R.xC}r....F...X| 00000110 03 dc a6 13 88 75 16 74 00 00 00 00 00 00 00 00 |.....u.t........| 00000120 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................| * 00000180 00 41 35 52 00 00 00 00 00 41 35 5a 00 00 00 00 |.A5R.....A5Z....| 00000190 00 41 35 62 00 00 00 00 00 41 35 6a 00 00 00 00 |.A5b.....A5j....| 000001a0 00 41 35 72 00 00 00 00 00 41 35 7a 00 00 00 00 |.A5r.....A5z....| 000001b0 00 41 35 82 00 00 00 00 00 41 35 8a 00 00 00 00 |.A5......A5.....| 000001c0 00 41 35 92 00 00 00 00 00 41 35 9a 00 00 00 00 |.A5......A5.....| 000001d0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| * 00000200
This repeated sector is called the idblock and appears in the technical documentation for the Cat's editor. Because this is a 68K, everything is big-endian as G-d Himself intended, though a fair bit of it is unused. It contains copies of the 68000 data and address registers in the first 64 bytes, the 68000 status register, a two-bit disk format ID ($3326 here, but an earlier $3325 format is also accepted) required to identify the disk as written by a Cat, a number of tracks ($0011 == 17, though we found nineteen), various editor state variables, a 128-byte disk identifier called the idtable (that's how it knows which workspace is what, though only about 24 bytes of it are actually populated here), and then pointers for any keyboard macros that were defined.
The documentation notes that backup idblocks appear elsewhere on the disk as well. One of these is in the first sector of the second track. After that we see a lot of binary data with some scattered snippets of text (later comparison shows this is the contents of the SV-RAM), and then starting with the first sector of the third track this peculiarly familiar-looking pattern:
00003c00 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................| * 00003df0 ff ff ff ff ff ff ff ff ff ff 55 55 55 55 55 55 |..........UUUUUU| 00003e00 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |UUUUUUUUUUUUUUUU| * 00003e40 55 55 55 55 55 55 55 55 55 55 ff ff ff ff aa aa |UUUUUUUUUU......| 00003e50 aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa |................| * 00003e90 aa aa aa aa aa aa aa aa aa aa aa aa aa aa ff ff |................| 00003ea0 ff ff 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |..UUUUUUUUUUUUUU| 00003eb0 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |UUUUUUUUUUUUUUUU| * 00003ef0 55 55 ff ff ff ff aa aa aa aa aa aa aa aa aa aa |UU..............| 00003f00 aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa |................| * 00003f40 aa aa aa aa aa aa ff ff ff ff 55 55 55 55 55 55 |..........UUUUUU| 00003f50 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |UUUUUUUUUUUUUUUU| * 00003f90 55 55 55 55 55 55 55 55 55 55 ff ff ff ff aa aa |UUUUUUUUUU......| 00003fa0 aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa |................| * 00003fe0 aa aa aa aa aa aa aa aa aa aa aa aa aa aa ff ff |................| 00003ff0 ff ff 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |..UUUUUUUUUUUUUU| 00004000 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 55 |UUUUUUUUUUUUUUUU| * 00004040 55 55 ff ff ff ff aa aa aa aa aa aa aa aa aa aa |UU..............| 00004050 aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa aa |................| * 00004090 aa aa aa aa aa aa ff ff ff ff ff ff ff ff ff ff |................| 000040a0 ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff ff |................|
If you look at our screenshot for Enable Forth Language, you see two 50% dithered grey blocks above and below it. Those are the document separators. Anyone who's messed around with the video memory in a monochrome framebuffer will recognize the pattern of aa 55 as 10101010 01010101 — a 50% grey. Since we know our framebuffer is linear and contiguous, let's pull out the 28896 bytes (84 bytes per line times 344 lines) from this offset and stick a Portable Bit Map header on it. Guess what:
So, as a test to make sure we can write our own arbitrary data to a Cat floppy, let's write something that can patch in a custom image. For the picture data, I found a photo of Jef Raskin sitting at a desk in front of a Cat, cropped and resized it to the right proportions, then crushed and dithered it out to a ready PBM with magick raskin.png -resize 672x344\! -dither FloydSteinberg -remap pattern:gray50 -negate raskin.pbm.
Now we need a disk format we can master a new floppy from. This sector dump, as easy as it was to parse, will not suffice for this purpose; there's not enough metadata about the sectors and tracks for the Greaseweazle software to create the right geometry. We'd also like a format that's well-documented and higher-level than raw flux or raw MFM because we know the Canon drive is writing renumbered but otherwise normal sectors, and it will make the disk image easier to alter. And, of course, the Greaseweazle software needs to support it. After reading through the Greaseweazle wiki's list of supported formats, I settled on the CPC extended DSK format since it has a fully documented specification and was likely to capture any unforeseen necessary nuances of the Cat's format, but still provides the actual sector data as decoded bytes. It can be captured with a command line like gw read --format=ibm-scan --tracks=c=0-79:h=0 test.edsk.
To verify viability, I captured the same floppy as eDSK and then wrote it to another blank disk (gw write test.edsk), and checked if the Cat would read that. It did!
However, moving to a higher fidelity format sometimes introduces complications. One complication while reading test disks written by the Cat was that some (not all) of them didn't actually start on physical track zero: they started on physical track two, leaving physical tracks zero and one unformatted, even though the track as written claimed to be track zero. I wasn't sure of the significance of this at the time — we'll revisit this later. Interestingly, the eDSK format also revealed that every sector on track zero is tagged as sector one, all ten of them, probably to speed up checking if the idtable on disk matches the current workspace or not since any sector will do.
The second complication is that we no longer get sectors in logical order but rather in the physical order they appear on disk, which may or may not match. The Cat doesn't seem to write tracks with any particular interleave, so to read and write the eDSK sectors we'll need to consult the Track Information Block (TIB) for each track to determine which sector is at which offset.
In the Catbox are two Perl tools, catrpic that will extract a PBM-format image from a Cat eDSK image (emitting the picture to standard output), and catwpic that will take a PBM-format image of the right dimensions and insert it into a Cat eDSK (emitting the hybrid eDSK to standard output). You've seen this picture before, but here it is again, the Cat loading from this modified disk image:
Hack No. 1: The Jef Raskin Picture Disk
In fact, some of you may have already realized how. Let's look at the idblock again, in which I mentioned the first 64 bytes are an image of the 68K data and address registers, eight each. In the 68000 architecture register A7 is the stack pointer. Because we have control of the stack pointer, we have control of the CPU's return address: if we change A7 in the idblock to another location, we can store a different return address there, and on the next RTS we'll take over the CPU. This isn't a flaw in the Cat's operating system, by the way — think of it more like save-file hacking, except that there's no ASLR or execute protection, so once you're in, you're in.
Reprising our disk's idblock, A7 is marked in bold:
00000000 00 00 81 2c 00 00 db c6 00 00 74 e0 00 00 74 c6 |...,......t...t.| 00000010 00 00 74 d4 00 02 c8 ea 00 40 7a e8 00 40 7c fc |..t......@z..@|.| 00000020 00 00 00 2c 00 00 ff 81 00 00 00 11 00 00 ff ff |...,............| 00000030 00 41 10 10 00 02 c8 d0 00 41 00 68 00 41 01 dd |.A.......A.h.A..| 00000040
That location $407cfc is past the end of display memory at $4070e0 but before the variable area declared to start at $40a280, so we can hypothesize the processor stack normally lives somewhere in this range (the tForth memory map calls this block part of the display memory, but it doesn't appear onscreen).
The Cat editor documentation provides two words that control saving and loading from a disk: save and restore. In the Catbox I wrote up a tForth ROM disassembler in Perl called fdis that works with the 1.74 ROMs (recovered tForth source code also exists for this, but you can be confident you're seeing exactly what's being run by pulling from the ROM). If you've got the MAME ROMs, unzip cat.zip and convert the 1.74 ROMs from interleaved to continuous using the Catbox's interleave_rom tool, like so:
% ./interleave_rom r74*.ic[24] > rom % ./interleave_rom r74*.ic[35] >> rom
Now we can use fdis to walk the ROM and print out the tForth opcodes for a given token (if it's a variable or 68K code, it will say so instead). We'll start with the restore routine, since we're trying to intercept loading. It appears deceptively short:
% ./fdis rom restore token = 0x016b 0002cb88 1128 cstate 0002cb8a 65 off 0002cb8b 0305 <restore> 0002cb8d ff don 0002cb8e 4e raddr 0002cb8f d3 emit 0002cb90 120c lastop 0002cb92 14e8 %disk 0002cb94 7c = 0002cb95 26 <;>
Yes, words can have angle brackets in them or indeed any symbol other than whitespace. The meat appears to be in the word <restore>, but the editor technical documentation says it's tricky:
The word <restore> reads useful information from the idblock (already read from the disk by the Disk command ... After this, it reads the display memory, immediately displaying it on the screen. Then it reads the remaining off-screen contents of the disk into memory.The text isn't quite accurate because the PC is not, in fact, part of the idblock, but it does tell us most of the action is actually in <save>. The reason both operations exit through common code is because the save operation compacts the dictionary and working text in memory before writing them out, so both the restore and save operations must unpack them before returning to the editor — in the restore case, after loading it from disk, and in the save case, after writing it. This particular word has a somewhat lengthy definition and we're going to tear it apart later, but we can see right in the beginning of <save> that the magic is done by a 68K assembly routine:It then executes the second half of <save> by use of a non-standard programming method. The entire machine state, including return stack, program counter and instruction pointer, is recorded. When it is restored (copied back into memory), execution resumes where it left off when <save> began writing the image into memory. This creates an unusual situation.
The same code (in the second half of <save> is used by both save and <restore>.
% ./fdis rom "<save>" token = 0x0304 0002c8d2 0433 notepointers 0002c8d4 0151 packforth 0002c8d6 0435 packtext 0002c8d8 0434 noteramsize 0002c8da 21 wlit 0x3326 0002c8dd 22 lit 0x00407666 0002c8e2 5b w! 0002c8e3 0106 recal 0002c8e5 e5 ?diskerror 0002c8e6 21 wlit 0x812c 0002c8e9 dd call [...]
This is calling a ROM routine at $812c. This routine, in part, starts by capturing the CPU registers:
00812C move SR, $407664.l 40F9 0040 7664 008132 movem.l A0-A7, $407600.l 48F9 FF00 0040 7600 00813A movem.l D0-D7, $407620.l 48F9 00FF 0040 7620
which is used for the memory image of the outgoing idblock starting at $407600. When the restore runs, another 68K ROM routine is called at the end of <restore> after loading everything:
% ./fdis rom "<restore>" token = 0x0305 0002ca6c d4 cls 0002ca6d 0106 recal 0002ca6f e5 ?diskerror 0002ca70 0109 idblock [...] 0002cb5b 21 wlit 0x8368 0002cb5e dd call 0002cb5f 55 1 0002cb60 37 <"> "Unable to restore text from disk." 0002cb83 38 <abort"> 0002cb84 26 <;>
The ROM routine it calls at $8368 finishes by restoring those registers from the in-memory idblock.
008368 move #$2700, SR 46FC 2700 00836C clr.l $40723c.l 42B9 0040 723C 008372 movea.l $40fdfc.l, A0 2079 0040 FDFC 008378 move.l A0, $40725c.l 23C8 0040 725C 00837E movea.l #$407260, A1 227C 0040 7260 008384 move.l #$265, D0 203C 0000 0265 00838A move.b (A0)+, (A1)+ 12D8 00838C dbra D0, $838a 51C8 FFFC 008390 move.l $410068.l, $407230.l 23F9 0041 0068 0040 7230 00839A movea.l #$407800, A0 207C 0040 7800 0083A0 move.w $407668.l, D0 3039 0040 7668 0083A6 move.l $40fbd0.l, D1 2239 0040 FBD0 0083AC lea ($6,PC) ; ($83b4), A1 43FA 0006 0083B0 jmp $7e5e.w 4EF8 7E5E 0083B4 move.l D0, $407238.l 23C0 0040 7238 0083BA beq $83cc 6710 0083BC move.l #$12345678, $40723c.l 23FC 1234 5678 0040 723C 0083C6 jmp $3210c.l 4EF9 0003 210C 0083CC movem.l $407600.l, A0-A7 4CF9 FF00 0040 7600 0083D4 movem.l $407620.l, D0-D7 4CF9 00FF 0040 7620 0083DC move.l $40725c.l, $40fdfc.l 23F9 0040 725C 0040 FDFC 0083E6 move $407664.l, SR 46F9 0040 7664 0083EC rts 4E75
Assuming no error condition is detected, this routine has the effect of restoring the stack pointer and all registers, including the state of the tForth VM which is entirely stored in registers, to point to the tForth word after the call to $812c in <save>. I note for completeness that this call actually occurs in two places, but both are in the first part of the word, so the second part of <save> is executed regardless. (The LEA and JMP idiom at $83ac is a fast way of doing a subroutine call by not pushing to the stack and appears frequently in the Cat ROM.)
Now that we know where it comes out, and since we know restoring the previous stack pointer will eventually return to the editor, we can insert a diversion: during the loading process we'll have the user press a key to continue, so that they can appreciate our splendidly rendered image, and then return to the editor via the rest of <save>. Let's make this a picture disk, complete with Jef Raskin's Wikipedia entry, so that you can read his biography using the Cat he designed. It should show his picture, wait for the user's admiration, and then load the article which can be then scrolled and searched with the LEAP keys.
For the text, we're going to take advantage of the serial port to load the document for us. I used Lynx to download and render the Wikipedia text to 80-column plain text, cleaned it up in a text editor, and added some instructions.
To avoid this problem, you could obviously use a terminal program that supports XON/XOFF, or you could simply send data with a slight delay after each character. I provide just such a program (written in C) in the Catbox; compile it with something like gcc -O2 -o sendfile sendfile.c. To send the file with a 10ms intercharacter delay, use a command line like sendfile /dev/ttyUSB0 9600 raskin.txt 1,10 which says to use /dev/ttyUSB0 at 9600 baud, sending raskin.txt with 10ms after every one character. Here the POWER9 Linux workstation is pushing the document to the Cat which streams as characters are received to the screen. Make sure text you transmit this way has CR-LF line endings (e.g., set ff=dos in vim).
Now for the executable portion. Obviously we could write this code in 68K assembly, but we have a limited amount of space before potentially running into the real stack and we'd like to keep the code as small as possible. That means writing it in tForth, so we need a means to jump back into tForth and have the VM run anonymous code that is not actually stored as a "real" word.
As it happens, tForth supports this as part of the goto word, which directly executes "naked" tForth code from memory given an execution address. It does this using a special reserved word called temp. temp's definition ordinarily is simply to return an error message:
% ./fdis rom temp token = 0x00f8 0000dc52 55 1 0000dc53 37 <"> "unassigned token " 0000dc66 38 <abort"> 0000dc67 26 <;>
The <abort"> word takes a condition and a string, and if the condition is true, displays the string as an error and aborts. As the default definition pushes a literal 1 to the stack as the first value, running this word under normal circumstances will immediately raise an error and halt. But remember that the token table is in RAM and therefore mutable. The goto word exploits this fact:
./fdis rom goto token = 0x00fe 0000dbbe 21 wlit 0x00f8 0000dbc1 92 +table 0000dbc2 5c ! 0000dbc3 f8 temp 0000dbc4 26 <;>
The word +table is 68K code that takes the given token value (it's $f8 here, which we know is temp) and returns the location of its execution address in the token table, basically multiplying it by 4 and adding the base address. This gets called a lot, so it needs to be fast. In practice the address it yields appears to be constant and predictable, so the execution address for temp will always be located in the token table at $4107e0 on a 1.74 ROM system. It then stores the new address — presto, the word is redefined — and calls it. The tForth technical docs warn that the code must end with a next token instead of the usual <;> for proper continuation, which we can accommodate. To run the new chimaeric temp, we'll call the Forth word execute, which is a 68K ROM routine residing at $d5ea that takes the token value and token table address of a word and runs it.
The 68K assembly equivalent of this is straightforward, which we'll call our trampoline. We'll change A7 in every copy of the idblock in the eDSK to point to a new 32-bit address which points to the word after that, where our machine code payload will reside, followed by our tForth tokens. Since we know where the display is on disk and we know the framebuffer ends in the middle of a sector (28896 is not an even multiple of 512), we have 288 extra bytes in that sector to insert the code right there and still remain reasonably clear of the real stack. This address could be $4070e0, immediately after the display ends, but since things can get pushed temporarily it's better to move it down a bit so garbage doesn't spill onto the bottom of the screen (I use $407120 which gives a 64-byte red zone). The code looks like this, which we compute at the time we patch the eDSK:
00407120 address pointing to entry 0040 7124 entry: 00407124 movea.l #OLD_A7,a7 2E7C OLD_ A7__ 0040712a movea.l #$4107e0,a1 227C 0041 07E0 00407130 move.l #target,(a1) 22BC 0040 7142 00407136 move.l #$000000f8,d0 203C 0000 00F8 0040713c jmp $0000d5ea 4EF9 0000 D5EA target: 00407142 jmp (a3) 4ED3 ; tforth tokens follow
We restore the old A7 value, store the address of our payload (target) to temp's entry in the token table and leaving the entry's address in A1, load the token for temp to D0 and jump into execute. I chose to use full 32-bit long encodings for the parameters to make it easier to adjust for other ROM versions with different addresses and token values. Notice that our payload looks just like a regular tForth word, starting with the call into the nesting routine. The D0 and A1 registers belong to a volatile set used for arguments to ROM routines and are not part of the tForth register state, so we can clobber them with impunity. We changed no other relevant register other than A7 and we immediately set it back, so we have not changed anything else other than to divert into our own code. When our tForth block finishes, our cuckoo word will be unnested and we'll fall right back into <save> to complete the restore process as if we never left it.
Finally, the tForth itself, which immediately follows the machine code trampoline. The <demit> word will draw text to the display at the given address; if the text has the high bit set, it will render it in reverse video. Bold or normal text is determined by what was used the last time a character was displayed, though for this purpose either weight works. The code we want to execute is " press any key" over + swap do i c@ i 407106 - 17 <demit> loop beep key drop next ; which will put a string on the stack with its length, loop over it and display each character, beep once, wait for a key, throw it away and then exit as goto requires through next. We could look the tokens up by hand, but we also can just define it to a throwaway word and dump from its execution address using c'.
Our patcher will insert all of this into the 288 bytes at the end of display memory on disk. Since most of you don't have a Cat, here's a video of the picture disk in action.

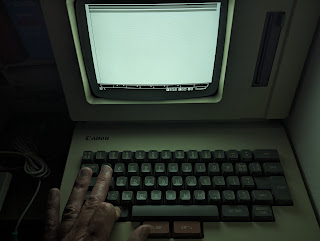

We turn on the Cat, insert the Raskin picture disk and press USE FRONT-DISK. The disk loads, displaying our picture, and pauses with "press any key" and a beep. (The disk light remains on as a side effect since we haven't yet run the word that turns the disk drive off.) We press a key, loading completes, and the document appears. Next, we use SHIFT and the LEAP keys to scroll line by line, then LEAP to the word "Apple" forwards and back a few times (using USE FRONT-LEAP to leap again with the same search), LEAP to the word "Aza," and finally LEAP to the DOCUMENT/PAGE marker, which will eventually bring us at the bottom of the text. Sorry about the darkness and changing light levels, but it's hard to video a CRT with a Pixel 7 Pro.The picture disk image is in the Catbox. The patching program we'll unveil at the end, since we're going to add more to it for the next couple hacks. Speaking of!
Hack No. 2: CatTerm
There are a couple downsides to what we just pulled for Hack No. 1, all due to the fact we temporarily deviate from the restore process before it completes. One minor drawback is that the floppy disk drive is still active during code execution as the drive motor hasn't been turned off yet. But the big one is our limited execution area: the Forth dictionary and document workspace are not unpacked until the end of loading, so the technique we just used can only run within the small space provided and can't call longer words we create, only ones already in ROM.
That means we have to let the loading process finish to run larger words, but if we do that naïvely then the Cat will still wind up in the editor and never run our code. Altering the execution address for <save> in the token table won't help us because it's already in motion, and we can't change the code that's executing ... unless we copy <save> to RAM and run that as the payload to our trampoline.
Here's the rest of <save>, including the second call to $812c. Either way we'll end up in common code at $2c900 assuming no errors.
0002c8f5 7e 0= 0002c8f6 3a and 0002c8f7 2b <0bran> 0x08 (0x0002c900) 0002c8f9 0106 recal 0002c8fb e5 ?diskerror 0002c8fc 21 wlit 0x812c 0002c8ff dd call 0002c900 15fc system.status 0002c902 20 blit 0x18 0002c904 66 + 0002c905 58 @ 0002c906 10d4 trkbuf 0002c908 61 to 0002c909 15fc system.status 0002c90b 20 blit 0x1c 0002c90d 66 + 0002c90e 58 @ 0002c90f 1854 ramend 0002c911 61 to 0002c912 22 lit 0x00407230 0002c917 58 @ 0002c918 1868 t#on 0002c91a 61 to 0002c91b 06d1 parksafe 0002c91d 0100 doff 0002c91f 0436 unpacktext 0002c921 21 wlit 0x0088 0002c924 010a @ptr 0002c926 11b0 text 0002c928 0152 unpackforth 0002c92a 22 lit 0x00407700 0002c92f 1574 idtable 0002c931 21 wlit 0x0080 0002c934 8a move 0002c935 21 wlit 0x00a0 0002c938 010a @ptr 0002c93a 13dc idadvance 0002c93c 61 to 0002c93d 54 0 0002c93e 0592 getdata 0002c940 54 0 0002c941 06b4 oldsetdata 0002c943 21 wlit 0x0100 0002c946 8a move 0002c947 06c5 setupcat 0002c949 0279 resetcursor 0002c94b 0205 initruler 0002c94d 0209 checkline# 0002c94f 020b checkgauge 0002c951 020c checkbattery 0002c953 0492 resetphonelight 0002c955 0495 checklocallight 0002c957 0336 rule 0002c959 14e8 %disk 0002c95b 1210 curop 0002c95d 61 to 0002c95e 22 lit 0x00407238 0002c963 58 @ 0002c964 2b <0bran> 0x07 (0x0002c96c) 0002c966 11fc dirtytext? 0002c968 64 on 0002c969 0741 verifyerror 0002c96b 9d error 0002c96c 48 ?dup 0002c96d 2b <0bran> 0x05 (0x0002c973) 0002c96f 11fc dirtytext? 0002c971 64 on 0002c972 e5 ?diskerror 0002c973 26 <;>
The goal is to add code after the ?diskerror word at $2c972 (which aborts on errors) and before the end of the definition at $2c973. At that point the Cat's state is fully restored and expanded from disk but the editor has not yet been entered. Our tForth payload therefore becomes a copy of everything from $2c900 to $2c972 inclusive, followed by pushing our word's token value with a wlit literal word and execute re <;> with the explicit terminal call to re cleaning up any residual leftovers. Mercifully, the branches are relative and need not be relocated, and with the stack padding and trampoline it still fits in the 288 bytes available, so we just spew out the same tokens otherwise.
This idea has a lot of possibilities. For example, you could write up a word to automatically execute from the disk to patch up editor words in the token table for additional features, or install a utility, or even take over the system entirely. (Spoiler alert: stay tuned.) So for this second hack, we're going to do something useful for a change: a simple terminal program for the Cat. But wait, you say, doesn't the Cat already have the capability to send and receive serial data from the editor? It does, but it's not very asynchronous: you have to highlight and manually send text (using SEND) and you can't just type to the remote system, and individual keystrokes are particularly inconvenient. Plus, maybe you just don't want your entire transcript in your document, especially if you're running low on space.
As in the first hack, we'll load the tForth source over the serial port. Here it is:
: cattermloop begin
ser.?rxrdy if
@ser.char
demit
then
<?k> if
char char? off record dup
e1 = if
leave
then
semit
then
0 until ;
: cattermhi cls home ." CatTerm oldvcr.blogspot.com UNDO to quit" cr ;
: catterm edde if 0 40f884 ! -1 410078 ! cattermhi cattermloop 0 410078 ! -1 40f884 ! new-display else cattermhi cattermloop then ;
(Now here's a great advancement in open source: it comes with its own source code as the document, preparsed into the dictionary and set to autostart. You can even preview the code with USE FRONT-DISK and see what code you're about to run. Wanna change it? Change the code in the editor and USE FRONT-ANSWER, and the words will be redefined and ready to execute. Save it to disk, repatch the disk image, and make it your own.)
The main loop in cattermloop bounces between checking if a character is waiting at the serial port and if a keypress is pending. If one is at the port, it reads it and prints it to the terminal at the cursor position. If one is at the keyboard, it grabs it, stuffs it into the LEARN buffer if appropriate, and then checks to see if it's the UNDO key (code $e1). If it is, it exits the loop.
The word we'll execute, however, is catterm. I decided to be a little silly here to prove a point. The Cat can operate in various modes, with the variable edde set to true if it's in the editor and crt set to true if it's at the prompt. But these are just memory locations, so you can either do edde on or -1 40f884 !, which references its address explicitly (yes, values are signed). By forcing these modes, you can make text go different places. We don't want anything emitted to the document, so if we started execution from the editor we turn the edde variable off and the crt variable on, start the loop, and then set them back and repaint the screen (otherwise we "just do it"). Properly written, however, you can also just say edde on and crt off, and vice versa.
As a last convenience we enter and highlight the word catterm in the document so that you can just run it again from the editor by pressing USE FRONT-ANSWER. We save it to disk and create a disk image, and patch it. Here it is booting. I couldn't run to the workstation and type at the same time as I was filming, but you can see that it autostarts and cleanly returns to the editor. The CatTerm disk image is in the Catbox.
I also demonstrate running it from the ok prompt by pressing SHIFT-USE FRONT-SPACE, entering page, entering catterm, and after pressing UNDO entering re to return to the editor. Everything works just as it should. Port speed and settings are configured with SETUP, just like everywhere else.But what if you don't want to return to the editor?
Hack No. 3: The First Canon Cat Demo?
This might be where I become branded a heretic by the School of Raskin for escaping the primary interface. But it's a general purpose computer, and we should be able to use it for general purpose computer things. Plenty of stuff took over the Mac entirely, so I don't see why the Cat should be any different.
For this last hack, we'll go all the way live and make a full-fledged slideshow demo. I'll select and convert some pictures as a love letter to the 1980s office and we'll have the Cat load them in sequence directly from disk. When you exit the demo, it will cold-start the machine back to the editor (so we'll dub this a "cold booter").
Our payload can now be shorter, because the words for setting up the editor no longer need to be run. However, we still need to unpack the document text, such as it is (we can overwrite it later if we want), because it must be shifted up in RAM first to ensure the Forth dictionary ends up in the right place. In addition, we need to set a system flag to prevent screen repaints during that process or any title screen we put on the disk will get obliterated.
After the doff at $2c91d, which turns off the disk drive, in our cold booter payload I insert a showmove? off to ensure unpacktext doesn't try to repaint the screen. We'll then do everything up to, but stop short of, the setupcat at $2c947. Instead, at that point we'll push our token and end with execute cold ; since we won't be returning to the editor and we won't try to keep any of the system variables intact.
Now for the pictures. It will be simplest to segregate the slides to a second disk which we can occupy the whole of. We'll have the Cat format it, then promptly overwrite it with our own data. The rtrk and wtrk words will load or save an entire track of data (5120 bytes) to or from a given memory address, so we will have each picture occupy 28896 bytes divided by 5120 bytes per track to equal 5.64375 tracks, i.e., six tracks apiece rounded up. This is a little inefficient for the last portion of the display but we're optimizing for speed here.
If we're going to ask for a new disk, we should do so with style, so this will be our screenshot image. C'mon, he's the original father of the Mac too!
To create the slides, after having the Cat format a blank disk, we'll transmit the bitmap data via the serial port. This is binary safe if we disable XON/XOFF first, or otherwise the Cat will intercept and act on those characters. For example, this snippet at the ok prompt will wait for data from the serial port and read 28896 bytes from it, spewing them to the screen directly. We assume your serial port is still configured for "SEND Command/Full Duplex" at 9600bps, 8-N-1.
ser.xon.tx.off page 4070e0 400000 do ser.rx i c! loop key drop
Then send the 28896-byte raw bitmap data (in our case, the scaled and dithered PBM with the PBM header removed) with something like sendfile /dev/ttyUSB0 9600 image.cat — no intercharacter delay is necessary as this loop will have no problem keeping up. Note that we use ser.xon.tx.off to disable acting on received XON/XOFF characters, but actually fetch characters with ser.rx (which will wait for a byte to be ready). Once all bytes are loaded, it will wait for a key, and then stop.
We'll test it on Captain Solo by writing out a track and trying to read it back.
ser.xon.tx.off 4070e0 400000 do ser.rx i c! loop 400000 0 wtrk 401400 1 wtrk 402800 2 wtrk 403c00 3 wtrk 405000 4 wtrk 405ce0 5 wtrk . . . . . .
We turn off XON/XOFF for receive, load the image, then write out six tracks at the given addresses (5 overlaps slightly with 4). The six dots at the end report out the status of each track write with wtrk.
Don't get those arguments transposed to these track read/write routines, by the way. The operating system will try to seek to track 4194304, causing the head to repeatedly hit the outside rail and possibly damage itself! There is no bounds checking on these routines!
400000 0 rtrk 401400 1 rtrk 402800 2 rtrk 403c00 3 rtrk 405000 4 rtrk 405ce0 5 wtrk key drop . . . . . .
3c 0 do 4070e0 400000 do ser.rx i c! loop 400000 i wtrk 401400 i 1 + wtrk 402800 i 2 + wtrk 403c00 i 3 + wtrk 40500 i 4 + wtrk 405ce0 i 5 + wtrk 6 +loop
( wait for a key )
: keywait ( delay - key )
0 swap
0 do
drop
<?k> if
char char? off leave
then
1 ms
0
loop ;
( wait until the disk is out )
: diskwaitout ( delay - flag )
0 swap
0 do
drop
?diskrdy not dup if
leave
then
1 ms
loop doff ;
( wait until the disk is in )
: diskwaitin ( delay - flag )
0 swap
0 do
drop
?diskrdy dup if
leave
then
1 ms
loop doff ;
( general disk wait loop )
: diskwait ( waitword )
begin
( erase question mark )
403cdd 4038ed do ffff i w! 54 +loop
( ensure drive is on, needs a delay )
drive0 40 800000 or! 180 ms
dup 0500 swap execute if drop leave then
( draw question mark - bitmap data is lifo )
fe7f fe7f ffff fe7f fe7f fe3f ff1f ff8f f3cf f3cf f00f f81f
403cdd 4038ed do i w! 54 +loop
drive0 40 800000 or! 180 ms
dup 0500 swap execute if drop leave then
0 until doff ;
( display a picture stored on disk at a particular track number )
: trackpic ( track - )
( each picture is six tracks long with overlap in the last track )
dup
400000 swap rtrk drop
dup 1 +
401400 swap rtrk drop
dup 2 +
402800 swap rtrk drop
dup 3 +
403c00 swap rtrk drop
dup 4 +
405000 swap rtrk drop
5 +
405ce0 swap rtrk drop
( wait for a keypress for 2560 ticks or reset if UNDO pressed )
0a00 keywait e1 = if cold then
;
( main loop )
: slideshow ( - )
( turn off editor )
edde off crt on
( mac gimme disk screen is already encoded in the screenshot )
['] diskwaitout diskwait
['] diskwaitin diskwait
( make sure we can read track 0 )
recal 0 <> if
page ." disk read failure"
1000 keywait drop cold
then
( draw 32x32 happy mac and erase bottom of floppy disk icon )
aaaaaaaa 50000015 a7ffffca 57ffffd5 a7ffffca 50000015 afffffea 4fffffe5 afffffea 4fffffe5 acffc0ea 4fffffe5 afffffea 4fffffe5 afffffea 4e0000e5 adffff6a 4dffff65 adf87f6a 4df7bf65 adffff6a 4dfcff65 adfeff6a 4dfeff65 adeeef6a 4deeef65 adffff6a 4dffff65 adffff6a 4e0000e5 afffffea 57ffffd5 a800002a
403dd8 403304 do i ! 54 +loop
( shocked mac slide, then loop the rest of the slideshow )
400 ms 10 keywait drop ( prime key events ) 0 trackpic begin
0a ( number of pictures, then multiplied by tracks per pic )
6 * 6 do i trackpic 6 +loop ( each picture is six tracks )
0 until ;
( shamelessness )
: credits ." copyright 2024 cameron kaiser" cr ;
This is all pushed over the serial link and parsed into words on the Cat using the same process as before.
The main code starts with slideshow where we first make sure all updates go direct to the screen. After that, the diskwait word is what waits for the state changes of the floppy. It has its own routines for erasing and redrawing the blinking question mark. This word takes the token of another word as an argument which it calls to determine whether the desired condition is satisfied, so we call it first with diskwaitout to wait for the first disk to be removed, then diskwaitin to wait for the second disk to be inserted. These words directly manipulate the floppy drive through Gate Array #3 by briefly turning it on to check for the disk, then waiting for a settling period after the motor starts to get the disk status back. The question mark is encoded as a series of literal words pushed onto the stack in reverse order so they get pulled off in the right order for the loop.
With the next disk in, the recal word seeks for track zero and returns 0 for success or an error code for failure. Assuming it can find it, it draws the Happy Mac (with whole 32-bit words this time but using the same principle), primes the keyboard, and starts with the first picture, the Shocked Mac. The trackpic word loads the six-track image and waits for a keypress in a given timeframe, cold-starting the Cat if the UNDO key is pressed. The cold start process will of course try to read the disk, but it won't be recognized as a Cat floppy and will be ignored, thus putting the user back into the editor.
This does give the floppy drive quite a workout. You'll notice that the Shocked Mac appears only the very first time it boots and never in the loop after that, and it's because I think my floppy drive has a marginal track zero switch (at the age these drives are, I suspect other otherwise-working Cat drives have a similar problem). This switch appears to be mechanical on the Canon drive rather than the more typical LED/sensor combination. More times than not this particular disk drive could get back to track zero, but sometimes it wouldn't, which explains why some of my reads from disks the Cat wrote started on physical track two even though the Cat's firmware obviously believed it was writing track zero. It doesn't seem like an alignment problem with the switch or the drive because when it does find track zero, it reads disks written by the Teac (our "perfectly aligned" brand spanking new floppy drive) just fine, and obviously it's also able to write track zero more often than not or this demo might not have been possible.
Accordingly, the problem I ran into with this hack was the drive couldn't reliably get back to track zero after the last picture either (it's over 60 tracks away by then). If this happens to you in the editor, you can just try reading the disk again until it "gets it." But here rtrk will pause waiting patiently for the correct track to come by, which probably won't happen for the good minute or so it waits until it times out. Trying to manually step the head back in track by track didn't really help. The best solution was just to start back over on track 6 instead of track 0, and that seemed to work generally okay, though this is probably not a demo you want to leave running repeatedly on the Cat regardless.
Here's the finished product. Both disk images are in the Catbox.
This hack brings you the final iteration of catcpic, which now is a three-headed application. It requires your original eDSK and a properly formatted and inverted PBM, generates a nice randomized idtable so that your Cat can't confuse it with anything else (though you can pass it one in hex with -idtable=... if you want) and emits the resulting disk image to standard output. If you don't pass it a token in hex, it will install the "press any key" patch; if you do, and you specify -cold, you'll get a cold booter; otherwise you'll get a autostarter that will enable you to cleanly return to the editor.To compensate for the situation where your Cat's drive might also be acting up and not truly writing to track zero either, I've also included an eDSK optimizer tool. It will remove and properly relocate unformatted tracks, or even formatted tracks before the detected idtrack if you use -force, adjusting the eDSK DIB and TIBs and emitting the corrected disk image to standard output. You can also just say -test to see what it thinks about a particular image (-test -force will make it continue even if it doesn't think the disk is a Cat disk).
Things to do
Some considerations for a future entry:
- Figure out how to lash something like a Gotek floppy emulator to the Cat because I'm not sure how much more life this disk drive's got in it. The idea should be along the lines of building one of the adapters that let you use a PC floppy drive, but then plug an emulator into it instead.
- Fix for v2.4x ROMs, which some Cat enthusiasts run now, but that would require me to modify my Cat to do so, which I'm not entirely willing to do without a good reason. I'll take patches, though.
- A proper set of games for the Cat. How about a text adventure played in the editor?
- Audio demo? The tone and related words for playing audio tones documented in the tForth manual are not in the 1.74 ROM. There is a beep word which twiddles with the DUART, but it's not clear if it only beeps or can be made to play other tones.
- uCLinux? If a Palm Pilot can run it ...
- Write shorter blog posts? (Nah.)
Everything in this blog post is on Github under the BSD 3-clause license.
